HMKB 60
I really enjoy industrial design and heavy keyboards. While the group buy for the HMKB was running I didn’t pull the trigger because I had other outstanding GBs. Luckily there were some extras left when it finally finished in 2023.
Facts⌗
Model no. | HMKB 60 |
Manufacturer | Heavy Metal Keyboards |
Manufacture Date | 2023 |
Case | Bent steel top and bottom case |
Plate | lumberjack layout, custom made stainless steel |
Switches | Cherry New Nixies (clear top blacks) |
Keycaps | MT3 Susuwatari |
Dimensions | 315 × 130 × 35 mm |
Weight | 1460 gram |
PCB/Software | lumberjack + QMK |
Highlights⌗

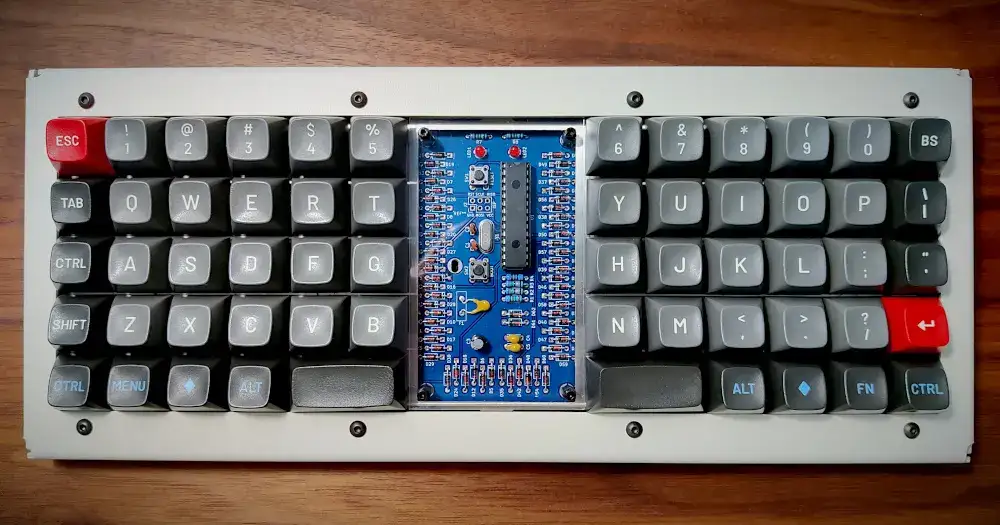

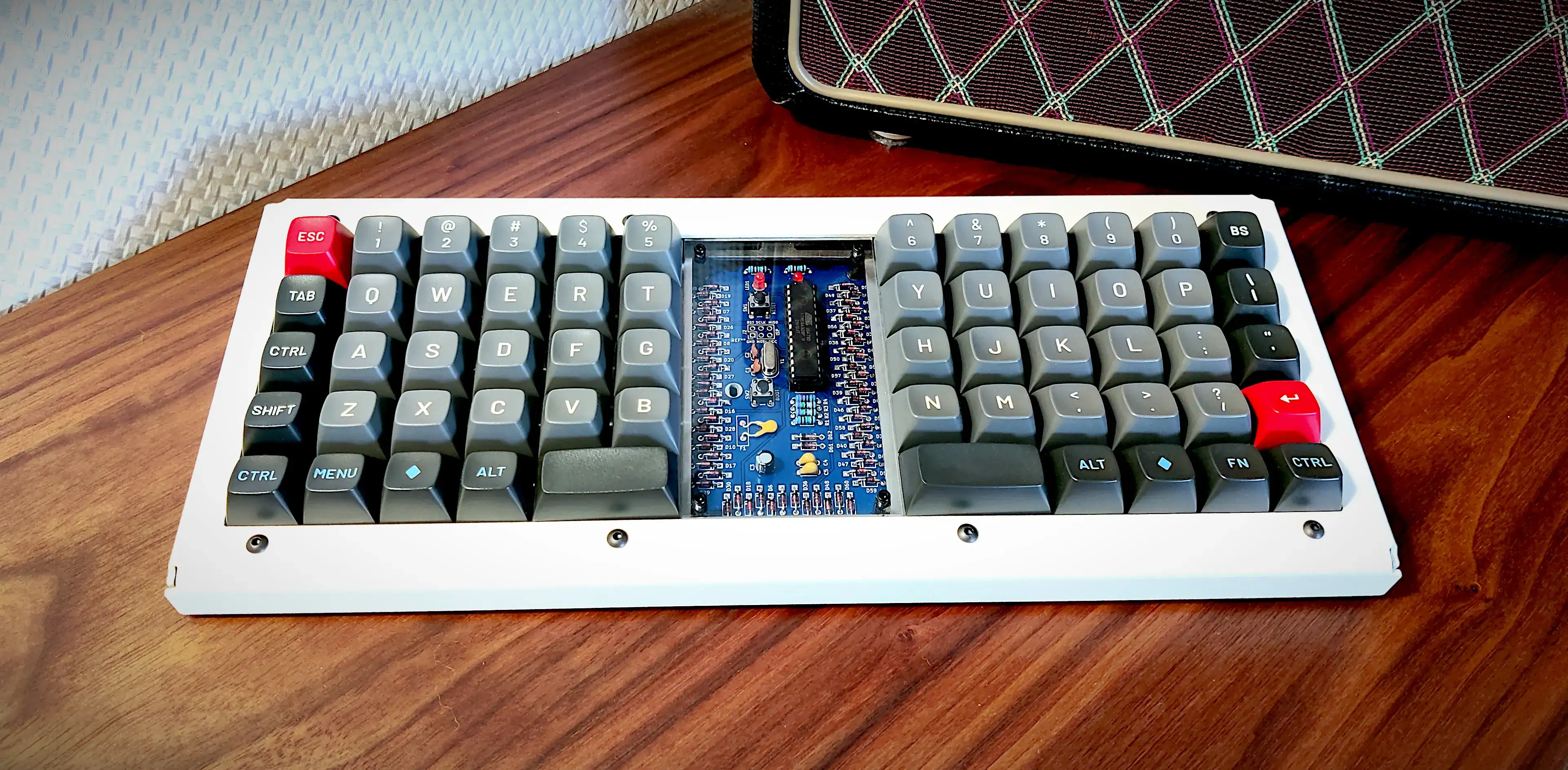

Another lumberjack PCB, this time in the HMKB 60 case. The HMKB 60 does not support the lumberjack layout, so I had to had to copy and paste together my own plate files and order it to be manufactured. Luckily both, the creator of the lumberjack and the folks at HMKB released their plate files. I used Mill-Max sockets again to create a hot-swappable PCB.
Layouts⌗
Qwertz layer⌗
1
2
3
4
5
F5
F6
F7
F8
F9
Esc
Q
W
E
R
T
Y
U
I
O
P
BS
Fn
Tab
A
S
D
F
G
H
J
K
L
+
#
Shift
Z
X
C
V
B
N
M
,
.
-
SftEnt
Ctlr
Alt
Gui
Alt
space
⇓
space
⇑
AltGr
Gui
Ctrl
→
Function layer⌗
^←
↑
^→
ü
Del
^1
PgUp
←
↓
→
ö
ä
PgDn
Home
End
ß
Print
Scroll
Pause
▶️
🔉
🔊
Lower layer⌗
^
F7
F8
F9
F12
7
8
9
=
F4
F5
F6
F11
4
5
6
Ins
F1
F2
F3
1
2
3
0
,
.
Raise layer⌗
°
!
"
§
$
%
&
/
(
)
?
{
}
|
[
]
<
>
Images⌗
